Pinnacle 40503A

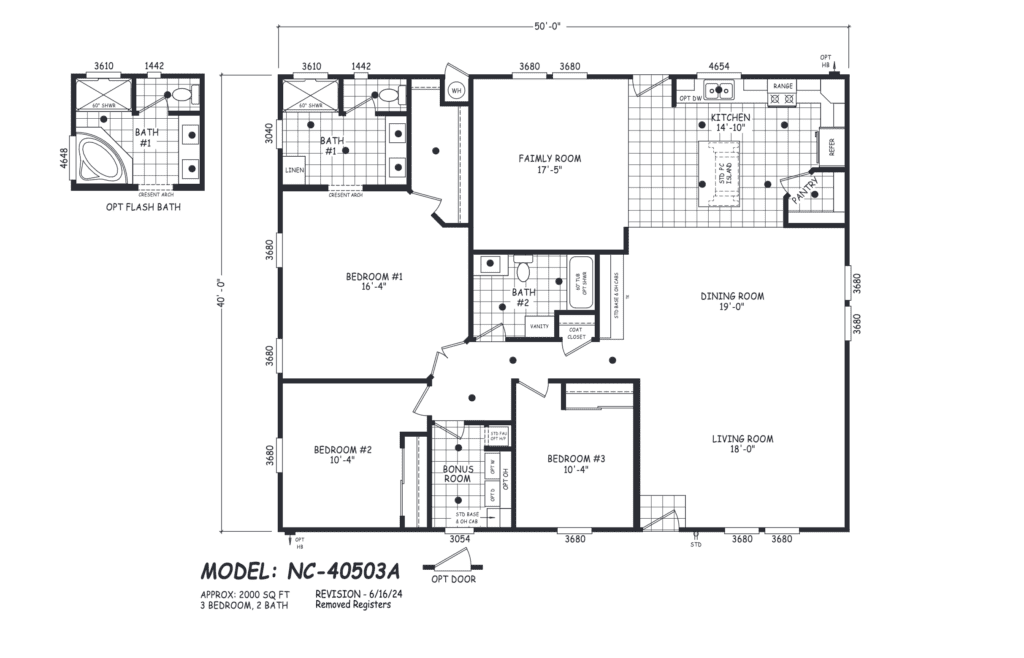

Floor plan of Model NC-40503A showing a 3-bedroom, 2-bathroom home layout with approximately 2000 square feet, including kitchen, dining room, living room, family room, and optional flash bath

2 Beds

2 Bath

1,027 SQ. FT.

23′ 4″ x 44′

Pinnacle 24583A

Three-bedroom, two-bath layout with large kitchen, central bonus room, and open living and dining space; includes front and alternate covered porch entries. Approx. 1,353 sq ft.

3 Beds

2 Bath

1,353 SQ. FT.

23′ 4″ x 58′

Pinnacle 40593A

Two-bedroom, two-bath floor plan with bonus room and optional third bedroom or den, open kitchen with island, and extended front porch; approx. 1,635 sq ft.

3 Beds

2 Bath

1,632 SQ. FT.

40′ x 58′ 8″

Pinnacle 40483A

Four-bedroom, two-bath layout with bonus room, large kitchen and island, family room, dining area, and open-concept living room; approx. 1,920 sq ft.

3 Beds

2 Bath

1,920 SQ. FT.

40′ x 48′

Pinnacle 40684A

Four-bedroom, 2.5-bath home with bonus room, expansive family and living rooms, island kitchen, breakfast area, and formal dining room; approx. 2,720 sq ft.

4 Beds

2.5 Bath

2,720 SQ. FT.

40′ x 68′

Pinnacle 40764A

Five-bedroom, three-bath floor plan with den, retreat, bonus room, office, in-law suite, and expansive open living area; approx. 3,040 sq ft.

4 Beds

3 Bath

3,040 SQ. FT.

40′ x 76′
